Wattson Audio's definitive streaming DAC, combining proprietary spline filtering with Swiss precision engineering.
The Madison Streamer is Wattson Audio's definitive expression of digital playback and control. Designed and engineered entirely in Switzerland by the same team behind CH Precision, it combines a robust analog output stage with advanced DSP architecture. Its proprietary Spline filter, derived from CH Precision's reference designs, is optimized for temporal accuracy where musical coherence lives. Supporting both network streaming and S/PDIF digital sources, the Madison delivers balanced and single-ended outputs for seamless integration with any system.
CHF 4'390.00. Incl. Swiss VAT. Contact us to order.
Light Gray
Engineered to deliver accurate sound in real rooms, not just anechoic chambers.
A time-domain-optimized upsampling algorithm derived from CH Precision's reference designs, minimizing pre- and post-ringing for superior transient realism and rhythmic integrity.
Developed with CH Precision, operating in precise 0.5 dB steps verified to within ±0.1 dB. Preserves microdynamic nuance whether used as a digital preamplifier or feeding an analog stage.
Dual WM8742 DACs - one per channel - ensure superior separation, spatial coherence, and tonal purity for faithful musical reproduction.
Noise levels below 1 µV RMS (10 Hz–100 kHz) with dedicated filtering and regulation for each critical subsystem, from clock generators to the analog output stage.
| Type | Network player and DAC |

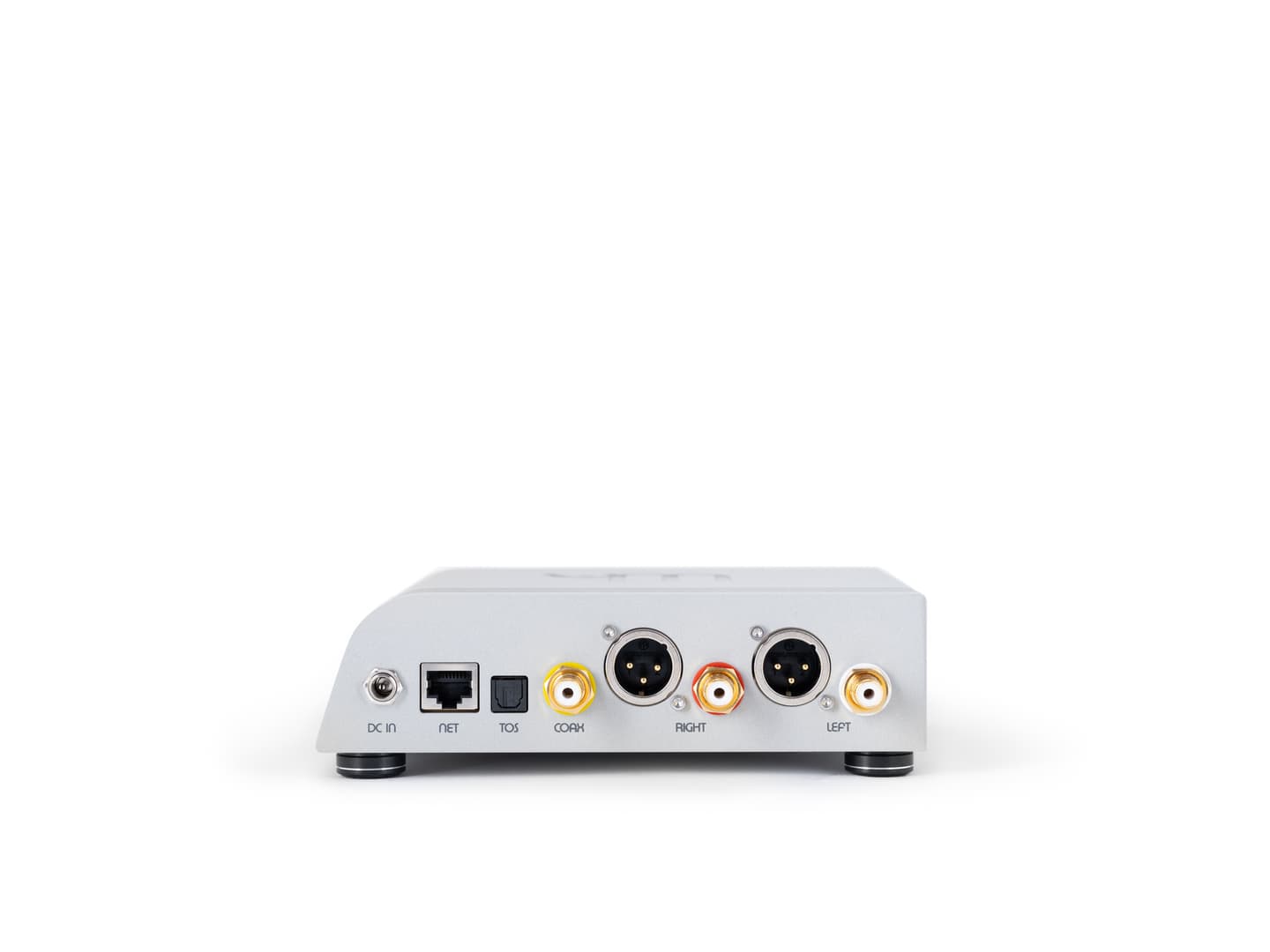

| Digital Inputs | Ethernet RJ45, RCA coaxial S/PDIF, TOSLink optical S/PDIF |
| Sampling Rate (Ethernet) | PCM up to 384 kHz, DSD up to 11.2896 MHz (256×) |
| Sampling Rate (S/PDIF) | PCM up to 192 kHz, DSD 2.8224 MHz (64×) via DoP |
| Bit Depth (Ethernet) | PCM up to 32-bit, DSD 1-bit |
| Bit Depth (S/PDIF) | PCM up to 24-bit |
| File Formats | WAV, FLAC, AIFF, ALAC, MP3, AAC, Ogg Vorbis, WMA, DSF, DFF |
| Upsampling Filter | Proprietary time-optimized spline filter (cubic splines) |
| Volume Control | Proprietary 64-bit, −80.0 to 0 dB, 0.5 dB steps |
| D/A Conversion | Multi-bit Sigma-Delta, dual mono (WM8742) |
| Clocking | Internal ultra-low jitter crystal oscillators |
| Analog Outputs | Balanced XLR, single-ended RCA, 6.35 mm headphone jack |
| Output Level | 4.0 V RMS (balanced), 2.0 V RMS (single-ended) |
| THD | < 0.001 % |
| Signal-to-Noise Ratio | > 120 dB (A-weighted) |
| Headphone Output | 2 × 150 mW (32 Ω), 2 × 50 mW (150 Ω), 2 × 10 mW (600 Ω) |
| Power Supply | External 5 V DC, 18 W |
| Power Consumption | < 0.5 W standby, 3.5 W nominal |
| Dimensions (W × D × H) | 175 × 185 × 52 mm |
| Weight | 1.1 kg |
| Color Options | Light Gray, Dark Gray |
| Design & Manufacture | Switzerland |
Powered by Wattson's proprietary streaming engine built around the Texas Instruments Sitara processor, with updatable in-house software.
