AsciLab F6B
Compact 2-way with a passive radiator for deeper bass.

Black

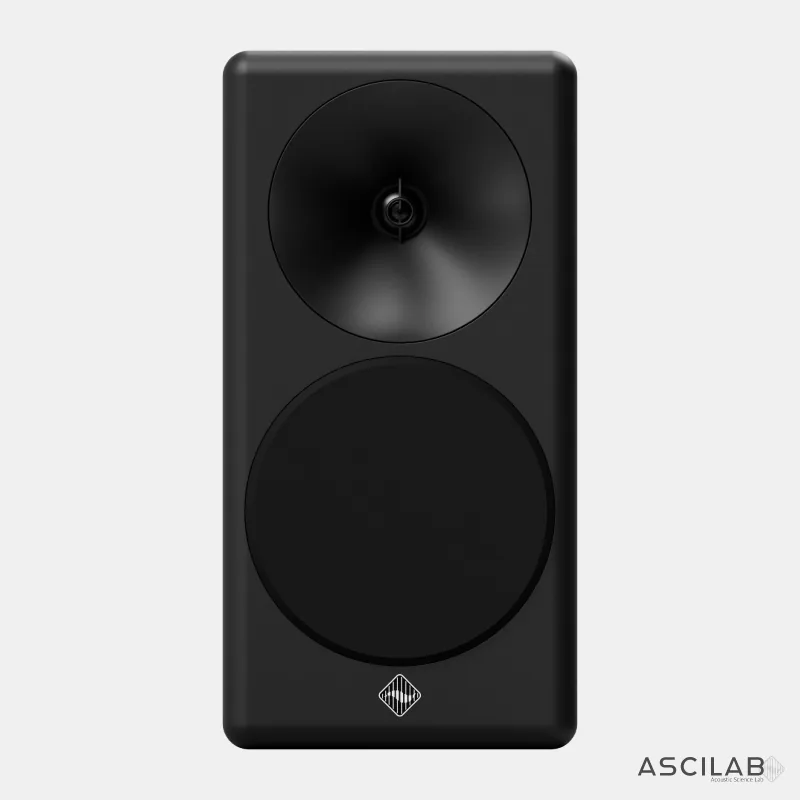

The F6B uses the same waveguided 1" aluminium tweeter and 6" fibre-cone woofer as the F6Bs, in a deeper cabinet with a 5×8" passive radiator at the back. The result is bass down to 46 Hz (−6 dB) from a speaker that still fits on a shelf or a desk.
What it solves
Engineered to deliver accurate sound in real rooms, not just anechoic chambers.
Waveguided tweeter
The waveguide and phase plug control dispersion and reduce interference, for a flatter response on and off axis.
Passive radiator, not a port

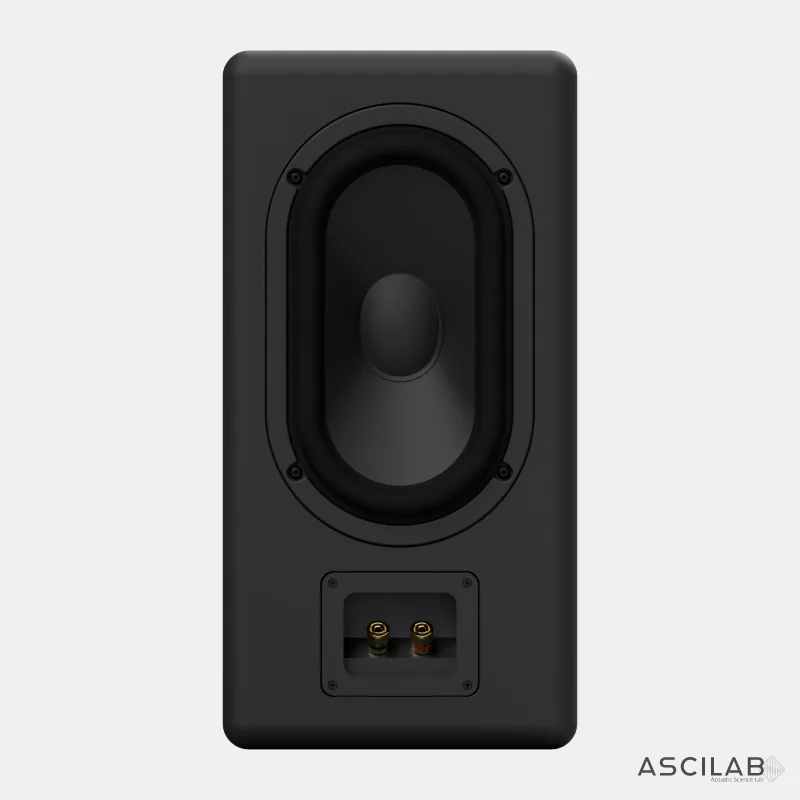

The 5×8" passive radiator extends the bass without the turbulence and chuffing a port can produce at high volume.
Easy to place
Its depth is optimised to sit on a shelf or a desk; leave about 10 cm behind it for the passive radiator to move.
Specifications
| Type | Passive 2-way with passive radiator |
| Tweeter | 1" aluminium dome with waveguide |
| Woofer | 6" fibre cone |
| Passive radiator | 5 × 8" |
| Crossover | 1 kHz |
| Sensitivity | 84 dB (2.83 V / 1 m) |
| Impedance | 4 Ω nominal (minimum 3.5 Ω) |
| Frequency response | −3 dB at 56 Hz, −6 dB at 46 Hz |
| Recommended amplifier | 50 - 125 W |
| Dimensions (H × W × D) | 400 × 203 × 265 mm |
| Weight | 7.5 kg per speaker |
| Finishes | Black, white |
Specs from AsciLab's website, checked October 2026.
What's included
- Pair of F6B speakers
- Woofer grilles
